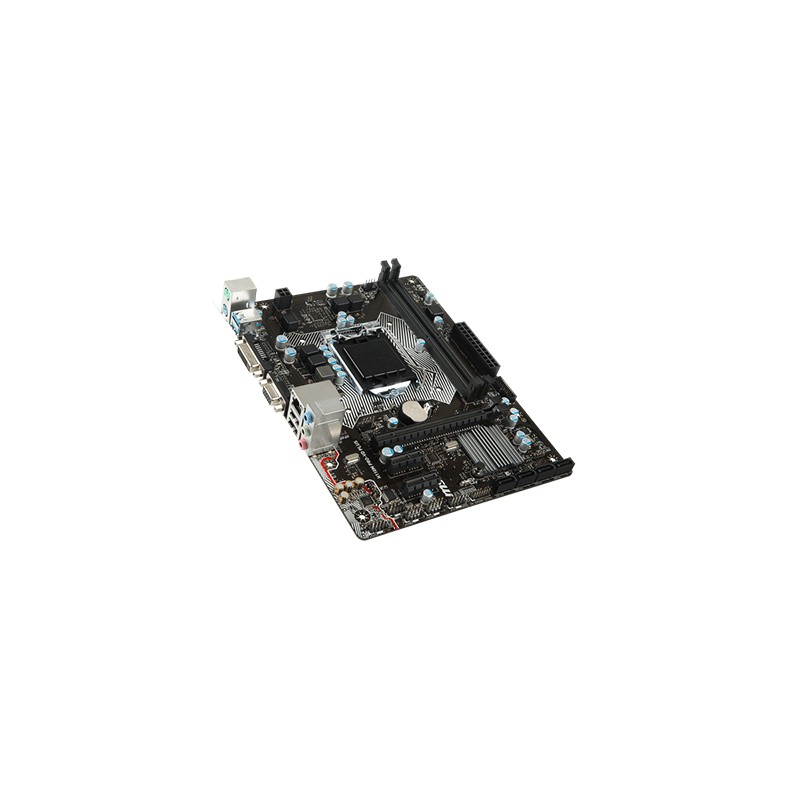

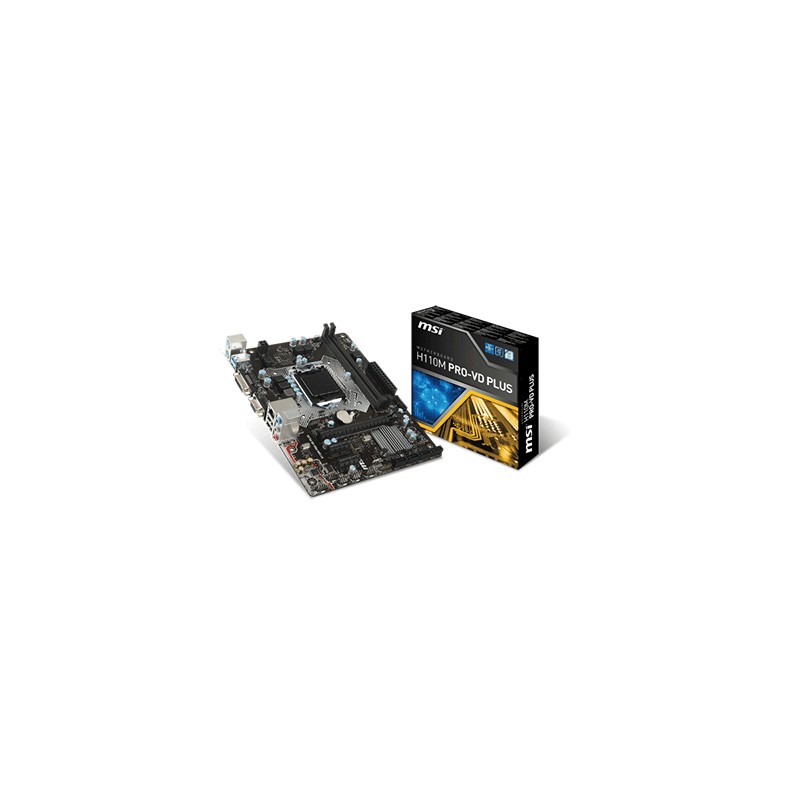

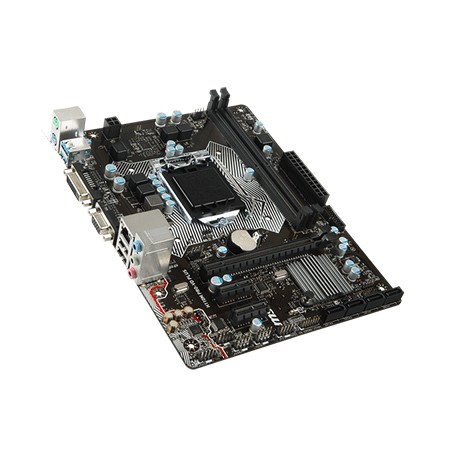

SCHEDA MADRE MAIN BOARD MSI H110M

CPU
• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
• Intel® H110 Chipset

Main Memory
• 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports Non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs
* DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel® chipset limitation
* Please refer to Compatibility reports for more information of compatible memory.

Slots
• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slots

Onboard Graphics
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

On-Board SATA
• Intel® H110 Chipset
• 4 x SATA 6Gb/s ports

USB
• Intel® H110 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio
• Realtek® ALC887 Codec
• 7.1-Channel High Definition Audio

LAN
• 1 x Realtek RTL8111H Gigabit LAN controller

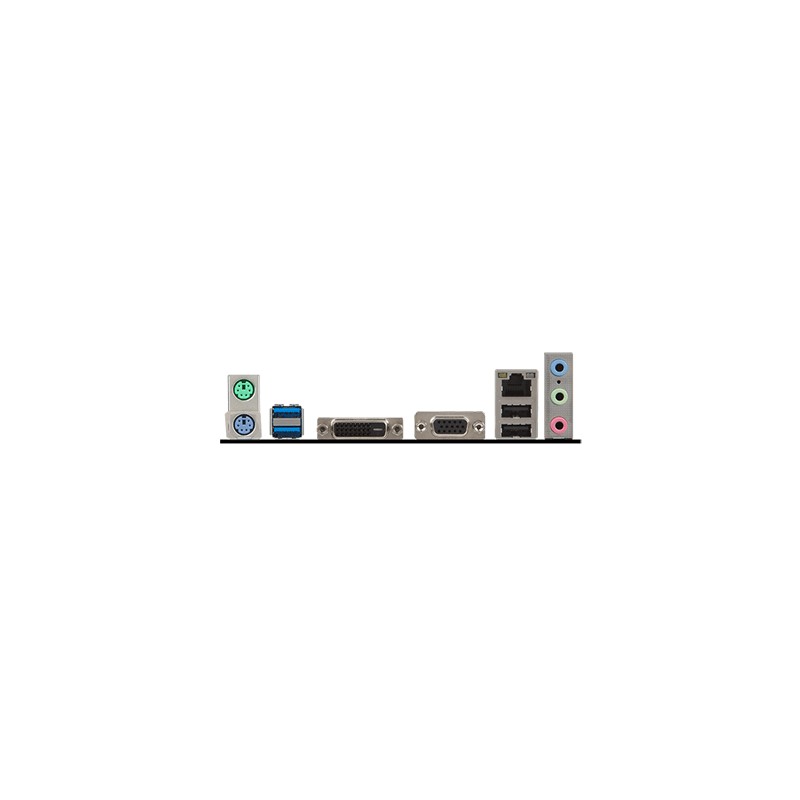

Back Panel I/O Ports
- 1 x PS/2 mouse port
- 1 x PS/2 keyboard port
- 2 x USB 2.0 ports
- 2 x USB 3.1 Gen1 ports
- 1 x DVI-D port
- 1 x VGA port
- 1 x LAN (RJ45) port
- 3 x audio jacks

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Serial Port connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

Dimension
• 8.9 in. x 6.8 in. (22.6 cm x 17.3 cm) Micro-ATX Form Factor

Mounting
• 6 mounting holes

All images and descriptions are for illustrative purposes only. Product specification, function, and appearance may vary based on different CPU and chipset. For detailed specifications, please consult the product specifications page.
